    IMS Intermediate Shaft Bearing Upgrade Eternal Fix

    Porsche IMS Intermediate Shaft Bearing Upgrade - Eternal Fix

    • PART NO:  99610590102EPS
    • BRAND:

      European Parts Solution

    IMS Intermediate Shaft Bearing Upgrade Eternal Fix
    Show Picture 1
    Show Picture 2
    Show Picture 3
    Show Picture 4
    Show Picture 5
    Show Picture 6
    Show Picture 7
    Show Picture 8
    Show Picture 9
    Show Picture 10
    View Larger Image

    Select Your Vehicle Fit

    Don't see your vehicle listed?
    Need it fast? Instant Shipping Estimator Calculate Domestic and International
    Instant Price Match
    $679.00

    Share

    Porsche Specialists Are Here To Help

    Call UsHablamos en español
    Call us Today at   (305) 442-2727
    Hablamos en español
    Live ChatEmail Us

    Description

    Porsche Ims Intermediate Shaft Bearing Upgrade - Eternal Fix with Oil Pressure Feed - Permanently Fix Your Intermediate Shaft With The Eternal Fix! Unlike Failure Prone Ball Bearings, Eps Uses A Patented Cylindrical Bearing With Thrust Control.

    Prevent future catastrophic engine failure permanently with the only true Eternal Fix for the notorious Porsche intermediate shaft bearing. Unlike the other failure-prone ball bearing products that the original IMS and other upgrades on the market use, EPS uses a patented cylindrical bearing with thrust control that can be pressed directly into the back of the engine without disassembly. The cylindrical bearings have over 12 times the load capacity of other ball bearing solutions making the EPS IMS bearing the clear choice.  Backed by a full 5-year warranty. Order yours today!

    WHAT MAKES OUR SOLUTION DIFFERENT?

    Roller bearings are not intended for carrying large axial loads. Similar to failure-prone ball bearings, when cylindrical roller bearings are used for thrust control, the roller becomes compromised due to the limited surface contact area on the sides of the rollers. The results of using a cylindrical bearing for thrust control will be similar to all other ball bearing solutions.

    In our patented system, we use a 15mm cylindrical bearing with thrust control that allows for the separation of the axial load from the radial load. Our roller bearings do NOT carry the axis load (thrust control) on the side, which leaves the roller free to carry only the radial load (main load). The axial load is carried exclusively on the entire permitter of the outer race. This results in a bearing that is not overloaded and will last the lifetime of the engine.

    EPS recommends using this product in conjunction to the Rear Main #8 Seal and Housing

    ******WILL NOT WORK ON AN IMS THAT HAS ALREADY FAILED. IMS BEARING FAILURES RESULT IN A COMPROMISED SHAFT. IF YOUR IMS BEARING HAS ALREADY FAILED YOU WILL NEED THE ENTIRE SHAFT WITH BEARING****

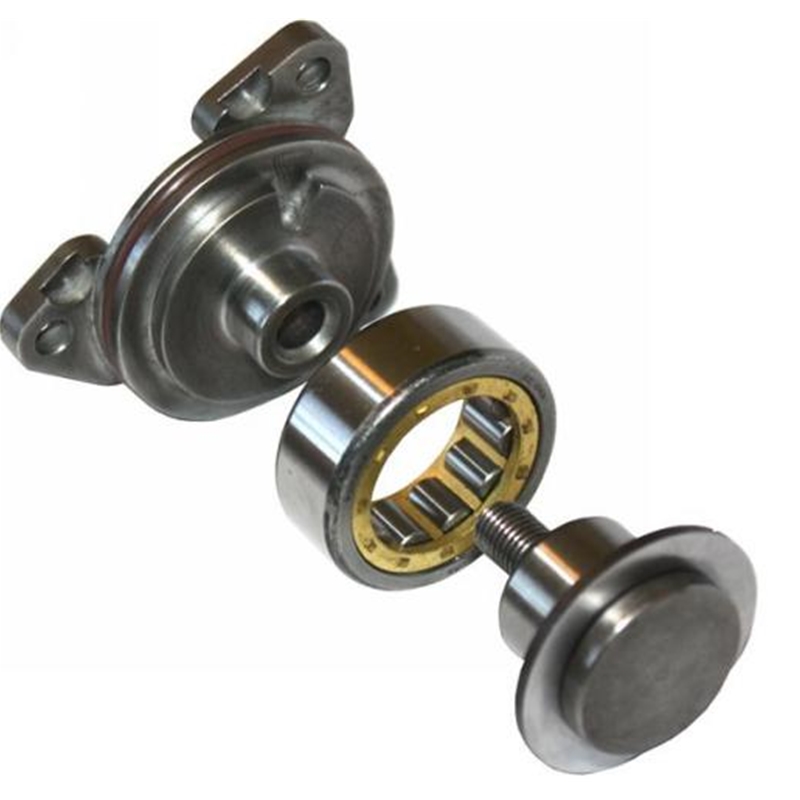

    Picture: EPS Porsche IMS Eternal Fix  Click Here for Full Installation Instructions

    THE EPS ETERNAL FIX Trade Mark

    The Patent Pending IMS Eternal Fix Trade Mark Retro Fit installs in-car without removal or disassembly of the engine required. We also offer fully Rebuilt Intermediate Shafts Upgraded with the Eternal Fix Trade Mark for those performing an engine rebuild. The Cylindrical Bearing with Thrust Control design has a load capacity 5 times greater than the inferior, failure prone, Ball Bearing solutions on the market!

    Why Cylindrical is Best

    Cylindrical Bearings have very high load bearing capacity, 12 times more than Ball Bearing. Cylindrical Bearings are used in, High Temp & Low Viscosity Lubrication such as Automatic Transmissions. They can carry extreme lateral pressure without wear to the friction surfaces. This is because the bearing friction surface is flat not concave.

    BALL BEARINGS ARE NOT THE SOLUTION!

    If you are reading this then you are aware of the ever so common IMS Bearing Failures. The design flaw with the factory IMS was the use of Ball Bearings in an extremely high load application. Once the Ball Bearings Fail it leads to a Catastrophic and Expensive engine rebuild. DO NOT REPLACE THE FACTORY, FAILURE PRONE, BALL BEARINGS WITH A BALL BEARING "UPGRADE" AS THEY TOO WILL FAIL!!





    Picture: EPS Porsche IMS Eternal Fix  Click Here for Full Installation Instructions

    (It may take a moment to load)

    ***5 Year Warranty***



    fits

    • 1999 Porsche 911 Carrera
    • 2000 Porsche 911 Carrera
    • 2001 Porsche 911 Carrera
    • 2002 Porsche 911 Carrera
    • 2003 Porsche 911 Carrera
    • 2004 Porsche 911 Carrera
    • 1999 Porsche 911 Carrera 4
    • 2000 Porsche 911 Carrera 4
    • 2001 Porsche 911 Carrera 4
    • 2002 Porsche 911 Carrera 4
    • 2003 Porsche 911 Carrera 4
    • 2004 Porsche 911 Carrera 4
    • 1997 Porsche Boxster Base
    • 1998 Porsche Boxster Base
    • 1999 Porsche Boxster Base
    • 2004 Porsche Boxster Base
    • 2000 Porsche Boxster Roadster
    • 2001 Porsche Boxster Roadster
    • 2002 Porsche Boxster Roadster
    • 2003 Porsche Boxster Roadster
    • 2000 Porsche Boxster Roadster S
    • 2001 Porsche Boxster Roadster S
    • 2002 Porsche Boxster Roadster S
    • 2003 Porsche Boxster Roadster S
    • 2004 Porsche Boxster S
    • 2004 Porsche Boxster S Special Edition
